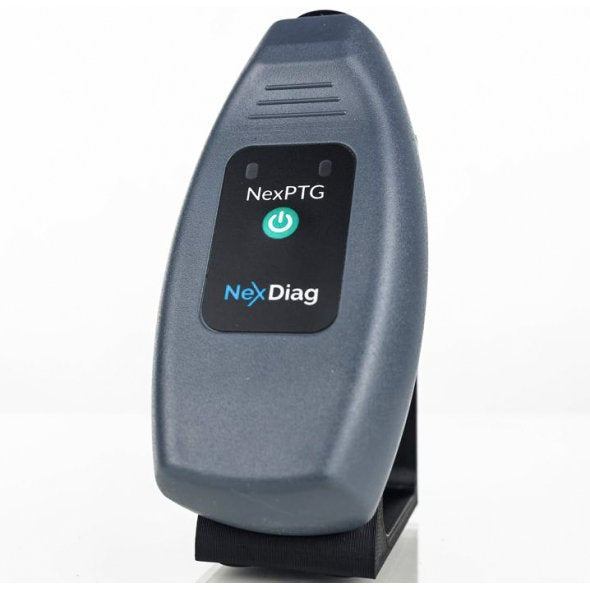

NexDiag NexPTG Standard - Paint Thickness Gauge (up to 1000 μm)

NexPTG Standard

The advanced version of the NexPTG Standard Plus paint thickness gauge provides fast, accurate, and intuitive vehicle testing.

This model is equipped with a Lacquer Coating Analysis System (SAPL), which facilitates the identification of any interference with the coating. The movable gauge head allows for precise measurements on concave and convex elements, making it ideal for comprehensive analysis of paint condition on variously shaped car surfaces.

Traditional flat probe: The probe with a flat end is optimized for quick and accurate measurements on flat and slightly curved surfaces.

High measurement accuracy: NexPTG performs up to 10 measurements per second, ensuring extreme data accuracy. It can store a total of up to 300 measurements.

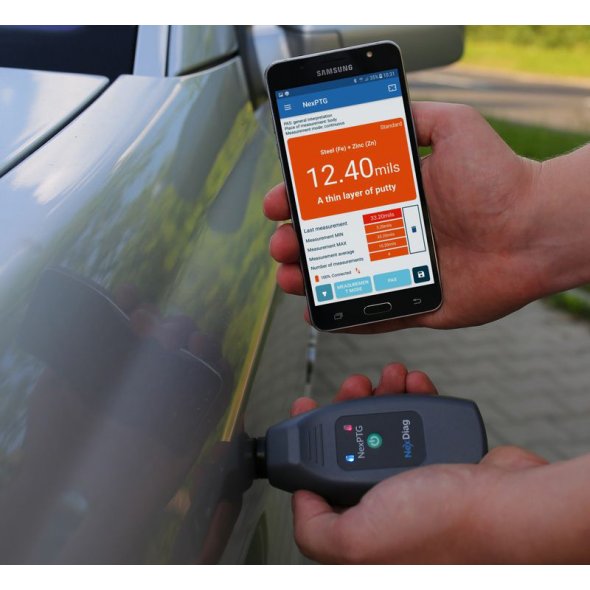

Intuitive mobile application: A free mobile application for iOS and Android systems can be downloaded for the gauge, allowing for easy data transfer and analysis of measurement results.

Automated surface recognition: The device automatically detects whether the tested surface is steel or galvanized, and adjusts the measurement methods for optimal results.

Device specifications:

• Measurement range: 0 – 1000 μm (0 – 39.37 mils)
• Measurement resolution: 10 μm
• Probe type / probe tip: traditional / flat
• Probe housing: profiled
• Measurement memory: up to 300 measurements
• Surface recognition: steel, galvanized steel, aluminum
• Lacquer Coating Analysis System – SAPL: Basic
• Measurement result curves
• Multi-language menu: yes, including Czech language
• Number of measurements per second: 10
• Standby time on alkaline batteries: approx. 100 hours
• Operating temperature: -20 to + 40 °C
• Unit settings: μm or mils
• Communication with smart device via Bluetooth 4.0 LE
• Application freely available including free updates
• Supported operating systems: Android, iOS
• Supported batteries: 2x AA
• Testing modes: Continuous, single
• Possibility of testing against a reference point
• Measurement statistics
• Automatic device shutdown during inactivity
• Device dimensions: 112 x 50 x 28 mm

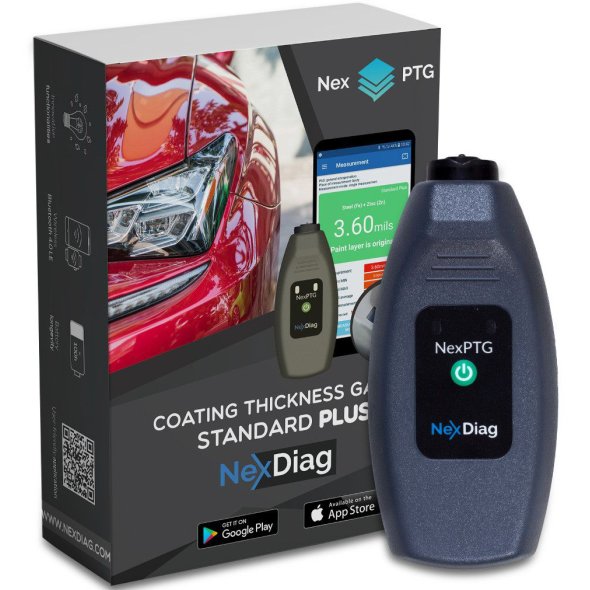

Package includes:

• NexPTG Standard paint thickness gauge
• Calibration kit
• User manual
• Set of alkaline batteries

This gauge is an ideal tool for anyone who requires reliable and fast paint thickness measurement with the possibility of deeper technological insight and analytical capabilities thanks to the advanced mobile application.
